Packing even more punch, the Seakeeper 4.5 eliminates roll on boats ~40-46 feet in a smaller, lighter package. It delivers 50% more stabilizing power than the Seakeeper 3 and runs on AC power for boats equipped with a generator.

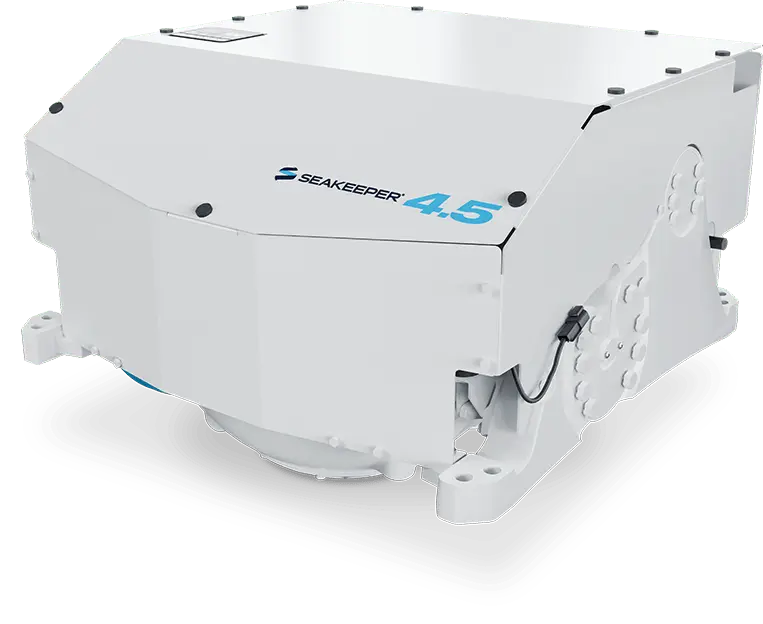

Seakeeper 4.5
(not including installation)
Find the Right Seakeeper for Your Boat
×
$55,600
The next generation of Seakeeper innovations introduces the most efficient and most effective gyrostabilizers ever built.
More stabilization. Smaller Package.

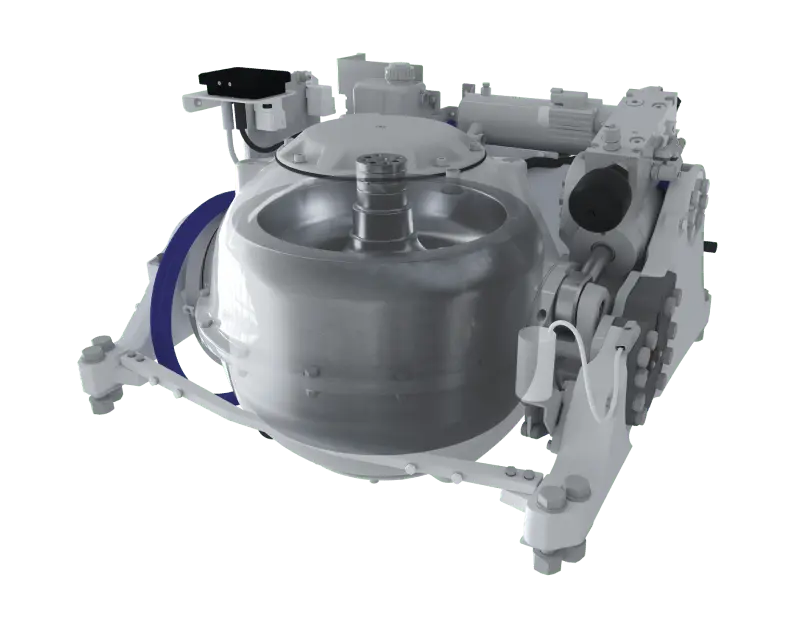

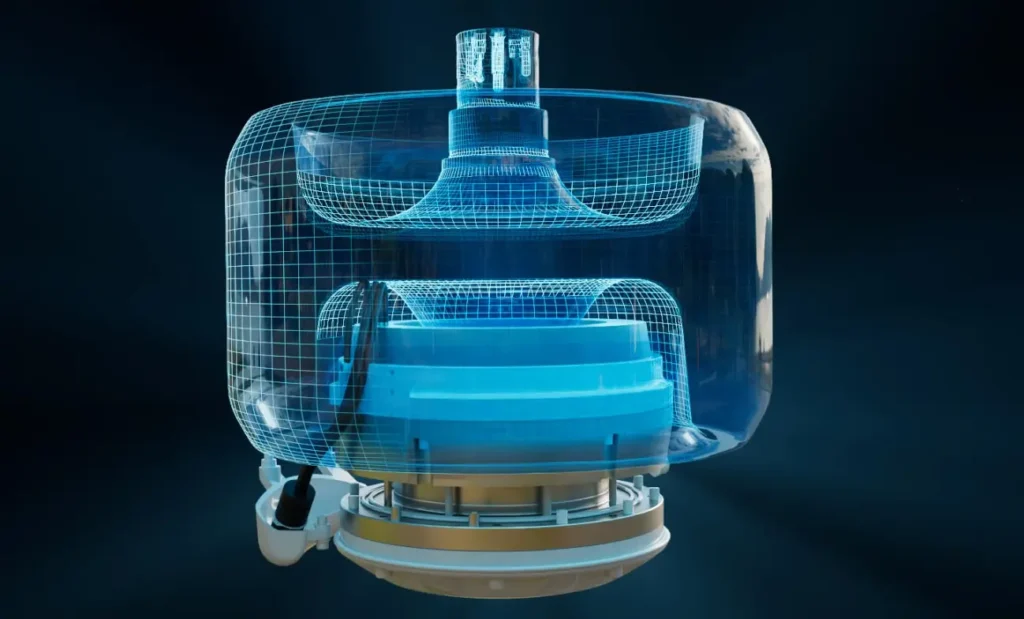

Asymmetric Flywheel
An all-new flywheel design features a deeper lower hemisphere, enabling the motor to be tucked inside the flywheel. This design reduces overall height and provides the most efficient flywheel shape to maximize performance per pound and footprint.

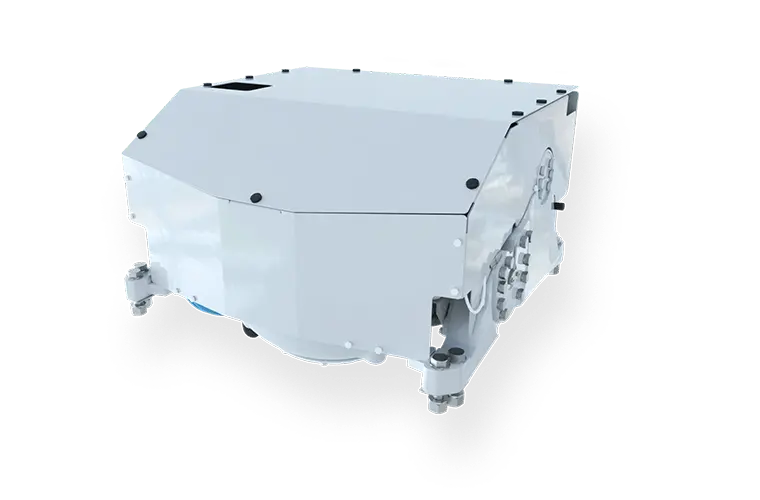

Faster Installation
The new frame can be disassembled to allow for installation in locations where it otherwise may not have fit.
Economical Maintenance

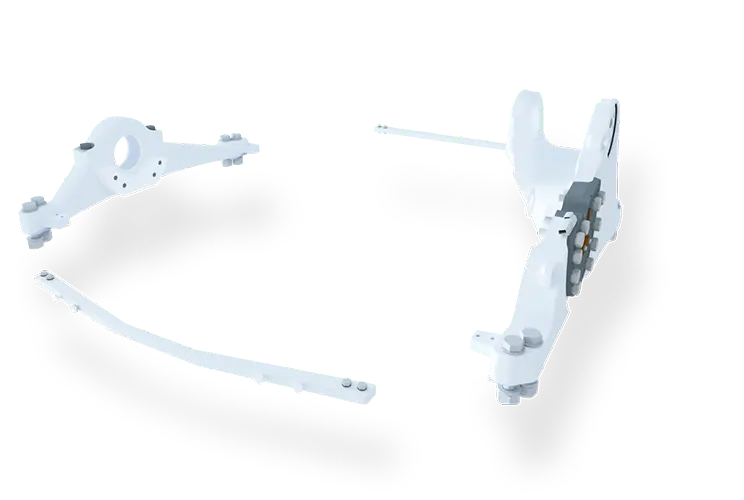

Zinc-nickel plated components, a single-cylinder brake design, and a redesigned cooling system provide better protection and easier maintenance.

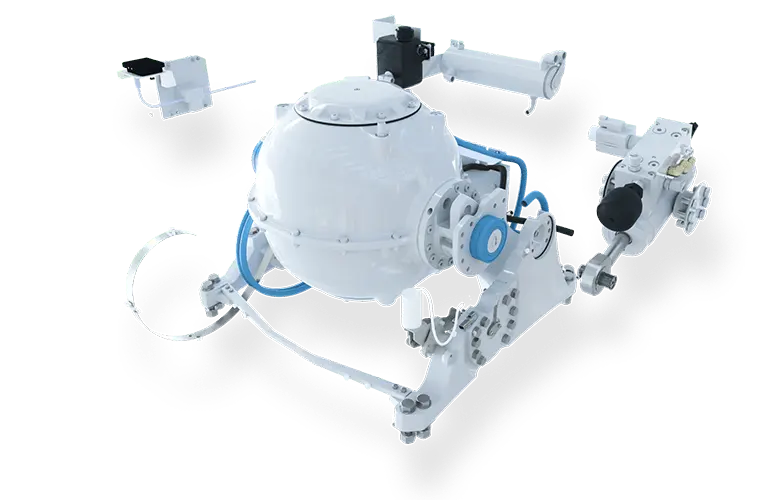

Easier Access
Fewer mounting bolts, greater access clearances, and quick-release top cover fasteners make service faster and easier.
| Technical Specifications | |
|---|---|
|
Max Rated Speed |
9,300 RPM |
|
Angular Momentum at Max Rated RPM |
4,500 N-M-S |
|
Spool-up Time to Max Rated RPM |
35 minutes (9,300 RPM) |
|
Spool-up Time to Stabilization |
19 minutes (6,975 RPM) |
|
Power Consumption |
|
|
Spool-Up Power |
1,950 Watts Max |
|
Spool-Up Power Input |
|
|
Operating Power |
950 – 1,600 Watts |
|
DC Power Input |
|
|
Control Power |
120 Watts Max |
|
Control Power Input |
12 VDC @ 15 Amps Max |
|
Seawater Pump Power Input Over Current Protection based on installed pump rating |
12 VDC @ 15 Amps Max |
|
Weight |
736 lb ( 333.8kg) |
|
Envelope Dimensions |
26.56 L x 28.05 W x 20.98 H (inches) 0.675 L x 0.713 W x 0.533 H (meters) |
|
Noise Output |
~72 dB @ 3.3 feet (1 meter) |
|
Seawater Supply to Heat Exchanger |
2.5 GPM (9.5 LPM) Minimum 4 GPM (15.2 LPM) Maximum |
|
Ambient Air Temperature |
32F – 140F (0C – 60C) |
Seakeeper Warranty
To ensure peace of mind, all Seakeeper products come with a multi-year factory warranty
