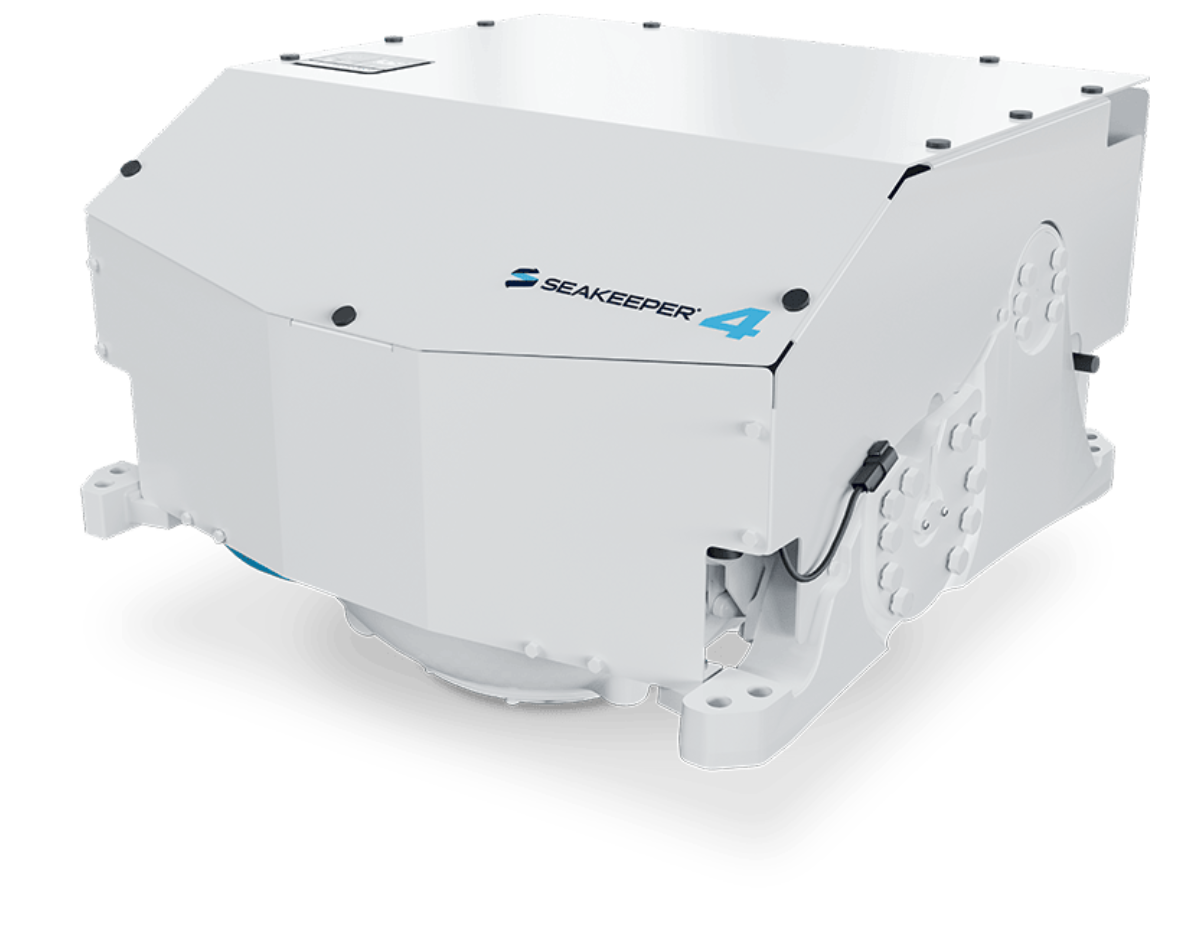

The Seakeeper 4 is revolutionizing roll reduction performance on boats ~38-44 feet in a smaller, lighter package. Designed to run on DC power for boats without a generator, it can fit anywhere the Seakeeper 3 fits now, making it a great option for upgrading.
| Technical Specifications | |
|---|---|
|
Max Rated Speed |
8,250 RPM |
|
Angular Momentum at Max Rated RPM |
4,000 N-M-S |
|
Spool-up Time to Max Rated RPM |
60 minutes (8,250 RPM) |
|
Spool-up Time to Stabilization |
34 minutes (6,188 RPM) |
|
Power Consumption |
|
|
Spool-Up Power |
1,050 Watts Max |
|
Spool-Up Power Input |
12 VDC @ 88 Amps Max |
|
Operating Power |
550 – 1,050 Watts |
|
DC Power Input |
12 VDC @ 46 – 88 Amps |
|
Control Power |
120 Watts Max |
|
Control Power Input |
12 VDC @ 15 Amps Max |
|
Seawater Pump Power Input Over Current Protection based on installed pump rating |
12 VDC @ 15 Amps Max |
|
Weight |
746 lb (338 kg) |
|
Envelope Dimensions |
26.56 L x 28.05 W x 20.98 H (inches) 0.675 L x 0.713 W x 0.533 H (meters) |
|
Noise Output |
~72 dB @ 3.3 feet (1 meter) |
|
Seawater Supply to Heat Exchanger |
2.5 GPM (9.5 LPM) Minimum 4 GPM (15.2 LPM) Maximum |
|
Ambient Air Temperature |
32F – 140F (0C – 60C) |
